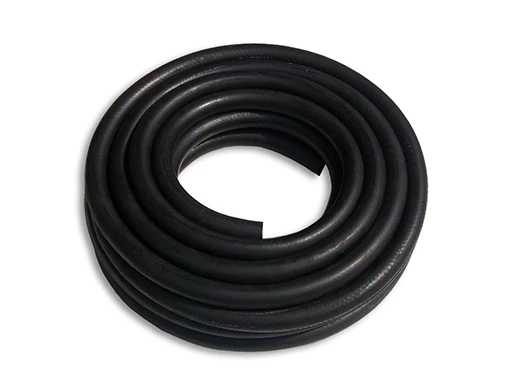

Tube of fuel injection rubber hose is lined with a tough layer of fluoroelastomer, which is an excellent elastomer of low permeation, heat resistance (400°F/200°C), high chemical stability, and anti-aging ability and so on. Exposed to diesel or biodiesel, fluoroelastomer shows an exceptional resistance, while normal injection rubber hose will be woken. An aramid spiral reinforcement protects the rubber hose body from crushing or kicking. The ideal working temperature of the abrasion-resistant cover ranges from -34 to 135°C (-29 to 275 °F). Made of special material, this cover shows a good resistance against ozone, sun degradation, acrid, weathers or other petroleum products.
Applied to auto and truck fuel injection systems for the transfer and delivery of gasoline, ethanol extended gasoline, oxidized sour gas, diesel fuel, biodiesel, lubrication oil.
| OD (in) | OD (in) | Lengths (in) | Working Pressure (PSI) | Burst Pressure (PSI) | Min Bend Radius (in) | Vacuum HG (in) | Weight (lb/ft) |
|---|---|---|---|---|---|---|---|
| 1/4 | 0.5 | 1.5 | max 100 | 900 | 0.75 | 24 | 0.1 |
| 1/4 | 0.5 | 25 | max 100 | 900 | 0.75 | 24 | 0.1 |
| 5/16 | 0.56 | 1.5 | max 100 | 900 | 0.84 | 24 | 0.12 |
| 5/16 | 0.56 | 25 | max 100 | 900 | 0.84 | 24 | 0.12 |
| 3/8 | 0.63 | 1.5 | max 100 | 900 | 0.94 | 24 | 0.14 |
| 3/8 | 0.63 | 25 | max 100 | 900 | 0.94 | 24 | 0.14 |
